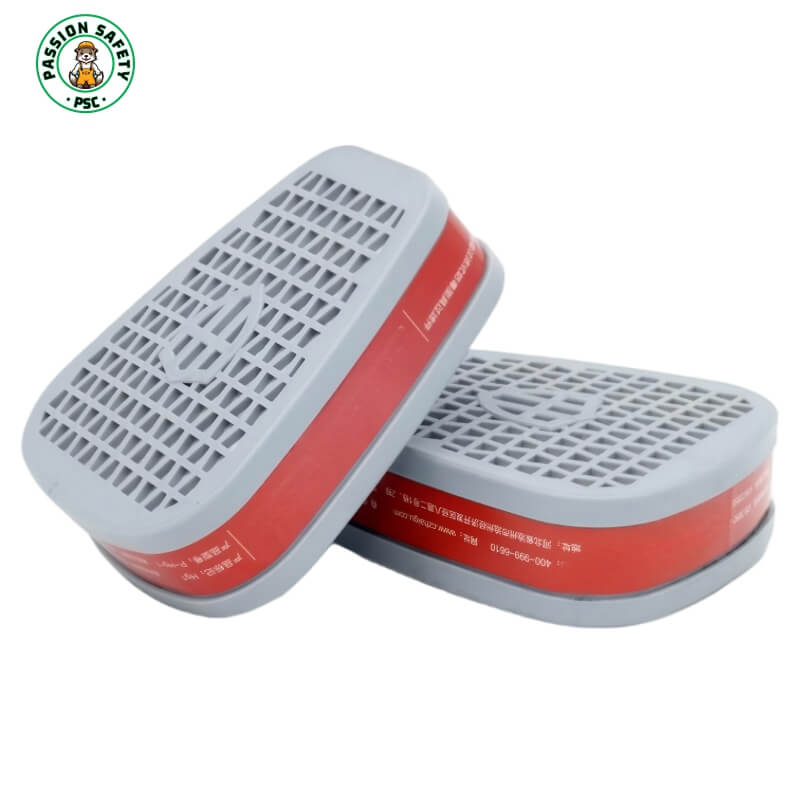

P-Hg-1 Mercury Vapor Filter Cartridge
Model: P-Hg-1
GB Standard: GB 2890-2022
Material: ABS engineering plastic
Interface: Standard bayonet (three-stage interface)
Specification: 2 pieces per pack
1. Classification & Marking
Type: Class 1 mercury vapor filter cartridge
Color Code: Red (Hg)
GB Marking: P-Hg-1
Structure: Four-layer filtration, with particulate filter (electrostatic filter cotton)
2. Protected Substances
Main Protection: Mercury vapor
Particulate Protection: 0.3μm particles (dust, smoke, aerosols)
3. Intended Uses
-
Instrument manufacturing involving mercury (thermometer, manometer, relay production)
-
Chemical industry with mercury vapor hazards
-
Laboratory operations involving mercury
-
Metal smelting and recycling with mercury release
-
Lighting manufacturing (fluorescent lamp, mercury lamp production)
-
Public utilities and medical fields with mercury vapor hazards
-
All workplaces with mercury vapor and particulate hazards
4. Performance (GB Standard)
Protection Level: Class 1 for mercury vapor
Particulate Filtration Efficiency: ≥95% for 0.3μm particles
Breathing Resistance: Low, large filter area, full adsorption of activated carbon
5. Notes
-
Use only with matching bayonet interface gas masks
-
Do not use in oxygen-deficient environments (O₂ < 19.5%)
-
Replace immediately when smelling mercury odor
-
Shelf Life: 5 years under sealed, unopened, dry storage
-
Do not wash, reprocess or reuse after expiration
-
Establish a regular replacement schedule for filter cartridges
-
Use only for mercury vapor and particulate protection
