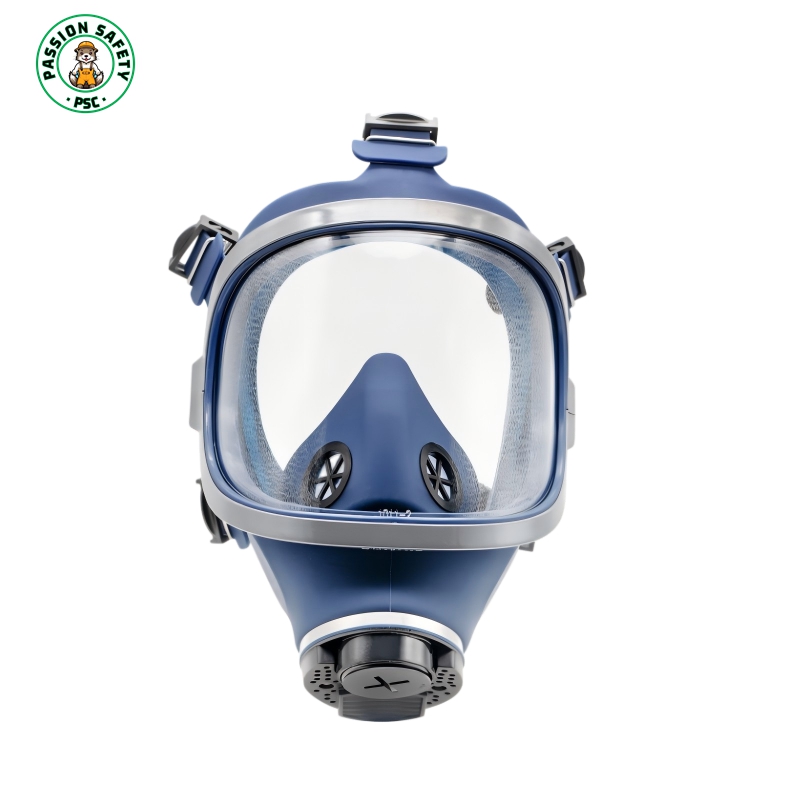

PSC 1011D Full Face Respirator is designed for complex risk environments, including chemical handling, painting, laboratory work, and pesticide spraying. Certified to EN 136 Class 2 and (EU) 2016/425 Category III, it ensures reliable protection and comfort for professional users in the EU market.
Key Performance (EN 136 Compliant):
- Total Inward Leakage: ≤ 0.5% (Class 2 standard ≤1%)
- Breathing Resistance: Inhalation 320 Pa, Exhalation 480 Pa (Standard: Inhalation ≤500 Pa; Exhalation ≤700 Pa)
- Lens Impact Resistance: Withstands 67g steel ball from 1.3m
- Flammability: Self-extinguishing within 5 seconds
- Field of Vision: Horizontal 120°, Vertical 100°
- Material Durability: Tested from -30°C to +70°C

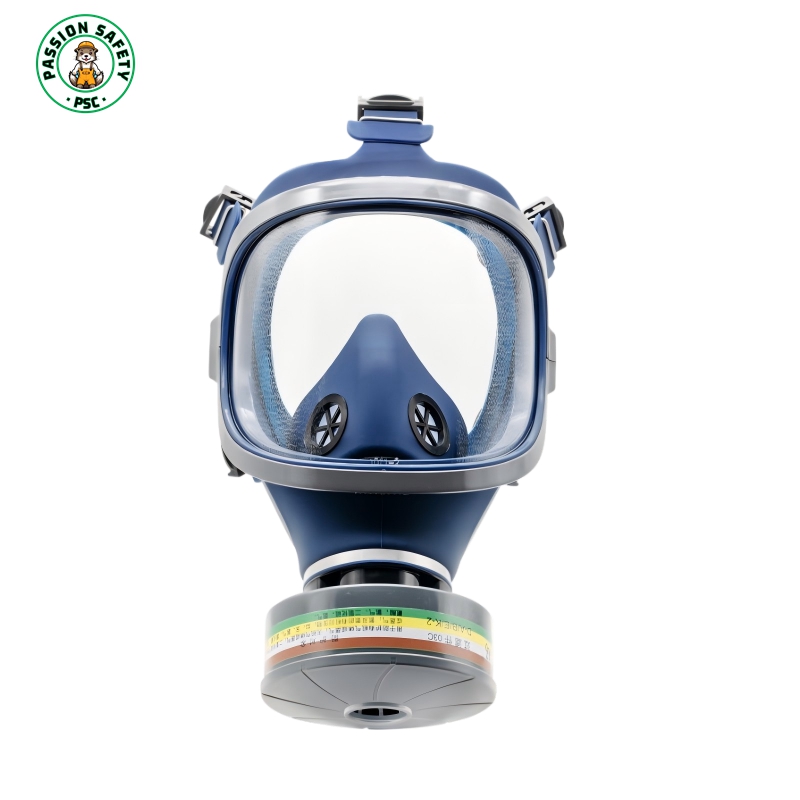

Filter Compatibility:
- Connection: Standard threaded interface (RD40)
- Compatible Cartridges:
- Particulate: EN 143 (P2, P3)
- Gas/Vapor: EN 14387 (A2, B2, E2, K2, ABEK2)
- Combined: A2P3, B2P3, E2P3, K2P3, ABEK2P3
Design & Features:
- Facepiece: Medical-grade silicone, hypoallergenic, EN 136 compliant
- Visor: Anti-fog, scratch-resistant polycarbonate lens, optical standard compliant
- Harness: 5-point adjustable headband for secure long-duration fit
- Voice Diaphragm: Clear communication per EN 136
- Markings: Model, Standard (EN 136:2017), Size, CE, Notified Body No.
Packing & Specification
- Color: Main body blue
- Single package: Neutral export box / Color gift box
- MOQ & OEM: Custom logo & packaging acceptable for bulk order
